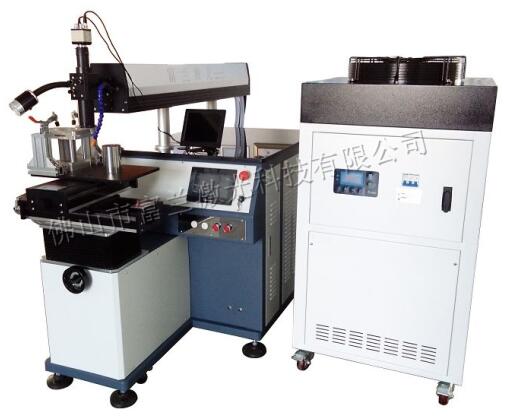

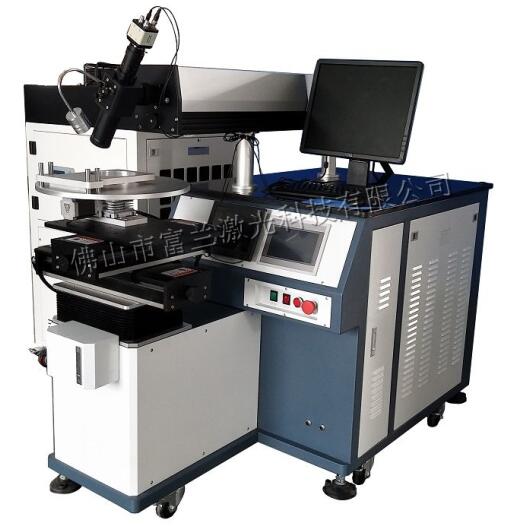

Optical fiber transmission laser welding machine is an upgraded version of YAG/lamp pump/hard optical path laser welding machine. It couples high-energy laser beam into optical fiber. After long-distance transmission, it is collimated into parallel light by a collimator and then focused on the workpiece. A laser welding equipment for welding.

Optical fiber transmission laser welding machine can be divided into two types: energy feedback (high configuration) and current feedback (low configuration).

It belongs to the pulse laser welding machine. The biggest advantage of pulse laser welding is that the overall temperature rise of the workpiece is small, the heat influence range is small, and the deformation of the workpiece is small.

The welding process belongs to the heat conduction type, that is, the laser radiation heats the surface of the workpiece and diffuses into the material through heat conduction. The waveform, width, peak power and repetition frequency of the laser pulse are controlled to melt the workpiece and form a specific molten pool, thereby making the workpiece A good connection is formed between them.

System principle: An energy detection device is added to the output of the laser to detect the size of the output laser energy, and the signal is fed back to the control system in real time, and compared with the set theoretical energy to form a closed-loop control system. To achieve the purpose of accurately controlling the laser energy output.

The main parameters:

Device model: HJ-GQ200, HJ-GQ300

Laser power: 200W, 300W

Feedback method: real-time energy feedback

Pulse width: 0.1-20ms

Maximum peak power: 7kw, 9kw

Maximum pulse energy: 60J, 70J (optional 90J)

Laser wavelength: 1064nm

Pulse frequency: 1-100Hz

Laser welding depth: 2.5 mm(sus304)/3.0mm(sus304)

Focal spot diameter: 0.3-2.0mm

Cooling method: water cooling

Power consumption of the whole machine: 9kw, 12kw

Power demand: 220V/50Hz

Features: The energy feedback fiber optic transmission laser welding machine produced by Foshan Fulan Laser is flexible in installation, the host and the workbench are separated, and different workbenches can be configured according to the needs of different products for welding processing; CCD camera monitoring system is optional for accurate positioning , Real-time observation of the welding process; small focus spot, precise positioning, and micro-welding; non-contact long-distance welding can be realized for parts that are difficult to weld; the welding seam is small and flat without porosity, and no treatment or simple post-welding is required Processing: The laser has the functions of energy splitting, time splitting, high-speed splitting or both energy splitting, which can realize multi-beam simultaneous processing and multi-station processing to improve production efficiency; it can weld complex trajectories such as planes, circles, and arcs Welding; spot welding, butt welding, stitch welding, sealing welding, seam welding and penetration welding can be realized.

Scope of application: Mainly used for welding of the same material of stainless steel, aluminum alloy, steel, aluminum, gold, silver and other metals, as well as welding between some dissimilar materials.
