The piston ring is a metal ring used to be embedded in the piston groove. There are two types of piston rings: compression ring and oil ring. It has four main functions: sealing, adjusting oil (oil control), conducting heat (heat transfer), and guiding (support). There are two main materials: cast iron and steel.

Piston rings are widely used in various power machinery, such as steam engines, diesel engines, gasoline engines, compressors, hydraulic engines, etc. With the development of society, there are more and more types of piston ring specifications. How to distinguish, identify and manage such complex and diverse piston rings requires identifying information on their surface marks. And the national standard GB/T 1149.1-94 stipulates that the name, form, size, code, material code, and corresponding national standard number must be clearly marked on the piston ring.

The traditional marking method has many processes, high consumables, insufficient marking, and long production cycle. In addition, some marking methods can also cause internal stress and deformation of the piston ring. The laser marking machine came into being and easily solved the shortcomings of the traditional marking method. However, the standard laser marking machine does not have the functions of positioning, automatic identification, automatic material transfer, etc., and the workpiece must be placed in the laser for each piston ring processed. The marking machine specifies the position for processing, and after the processing is completed, it is taken away. The positioning, feeding, and unloading are all realized manually, which is low in automation and low efficiency. It not only causes inconvenience to work, but also affects work efficiency. According to market needs, Foshan Fulan Laser Technology Co., Ltd. has specially developed a dedicated automatic laser marking machine for piston rings.

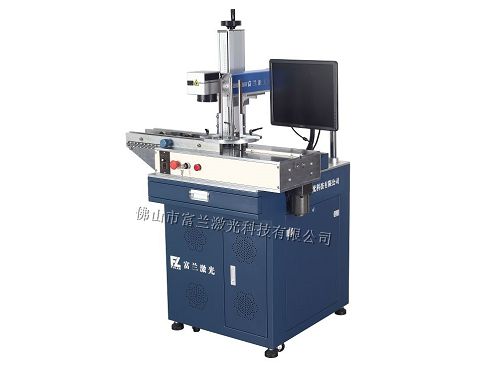

Next, the editor will introduce to you the piston ring automatic laser marking machine independently developed and produced by Foshan Fulan Laser Technology Co., Ltd.:

Specifications:

Device model: HSH-GQ30, HSH-GQ50

Laser power: 30W, 50W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.8

Laser repetition frequency: 20～200KHz

Marking range: 70×70 (mm), 110×110 (mm) (optional)

Max line speed: 9000mm/s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Power consumption of the whole machine: 700W, 800W

Power demand: 220V/50Hz

Appearance size: 910×780×1450

Feature description:

1. Using high-speed digital galvanometer, the beam quality is good, which can realize more precise marking;

2. Automatic feeding and marking, fast processing speed, 3-5 times of traditional marking;

3. The electro-optical conversion rate is as high as 30%, and the power consumption is about 10% of that of traditional models;

4. The laser works stably and is suitable for working in various harsh environments;

5. No consumables, maintenance-free, and long service life;

6. The use of supporting assembly lines for automated operations can meet the needs of mass production.

Application areas:

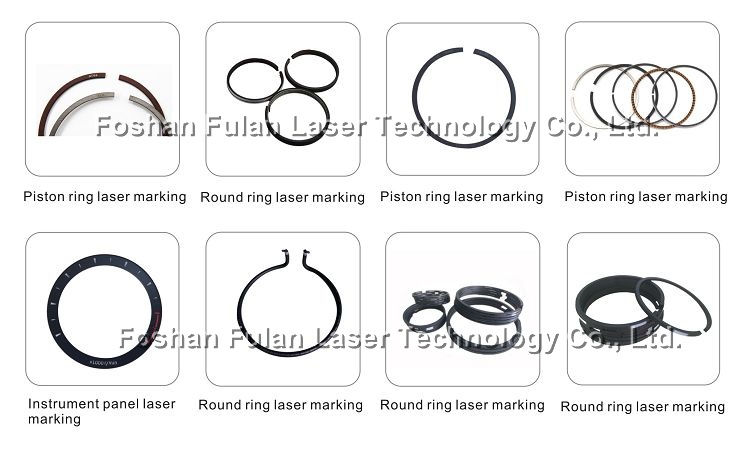

Mainly used for processing piston rings, instrument discs, heating tubes, etc.

If this machine cannot meet your requirements, Fulan Laser has a professional R&D team that can tailor a laser marking machine that suits you.

The logo engraved by the laser not only serves as a logo, but also as a decoration, so that your products can be upgraded to a higher level!
